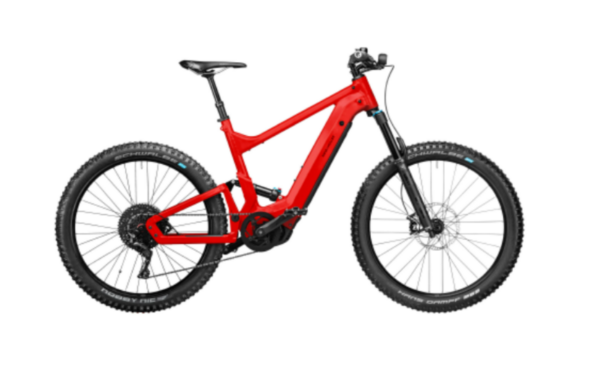

The Delite mountain. The mission: not staying on track.

Head out of the town and into adventure: if you love the challenges offered by off-road trails, you will come into your own with the Delite mountain. Control Technology boasting Fox Float full suspension with 150 mm travel and the powerful Bosch Performance Line CX motor, combined with 625 Wh of battery power and Schwalbe Nobby Nic tires, make the Delite mountain a truly exceptional off-road talent. What’s keeping you?

Model Delite mountain touring
Equipment Bosch Performance Line CX
Bosch PowerTube 625 Wh
Shimano Deore XT, 12-speed derailleur gear
Frame size 51 cm
Frame colour chili matt
Display Kiox
Battery 625 Wh
Specifications
Frame colour chili matt*; urban grey matt*
Suspension fork Fox Float 36 Performance, Air, 150mm, Boost
Rear shock Fox Float DPS Performance 210×50
Headset Acros IntegrationX, block lock
Seatpost Dropper Post X-Fusion Manic 100
Tires Schwalbe Nobby Nic Evo 65-584; Schwalbe Nobby Nic
Evo 70-584
Tubes Schwalbe AV21
Rims Rodi Tryp35 27,5″
Front hub Novatec Boost, QR, 32H
Rear hub Novatec Boost, QR, 36H
Battery Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*
Motor Performance Line CX (Gen4)
Display Bosch Nyon*; Bosch Kiox; Bosch SmartphoneHub*
Crankset Riese & Müller, 170mm
Chain ring 38T
Chain guard Kettenschutzring
Chain KMC X12 ( 125x )
Cassette Sunrace 12-speed, 11-50
Saddle FIZIK Monte MG
Pedals VP-531 Flat Pedal, Alu
Shifting system Shimano XT, 12-speed
Shifter Shimano SLX, 12-speed
Handlebar FSA Afterburner, 31,8 mm
Stem FSA Afterburner, 6°, 60mm
Grips Ergon GA20 black
Brakes Magura MT4, disc brake; Magura MT5, disc brake
Front light Supernova M99
Tail light Supernova E3 E-Bike; Supernova E3 E-Bike Tail Light
2
Luggage rack Riese & Müller; Riese & Müller*
Rubber Bibia*
Bell Billy
Lock Abus Bordo X+ 6000/90cm black*
Pump Beto air suspension fork pump
RX Hardware RX Chip (für RX Services)*
Frame size [cm] 47 cm*; 51 cm*; 56 cm*
Frame
geometries
Frame height 51
Top tube length [cm] 62
Reach [cm] 42,5
Stack [cm] 64
Head tube angle [°] 66,5
Seat tube angle [°] 73
Trail [mm] 103
Wheelbase [cm] 125,5
Bottom bracket height [cm] 33,5
Stand-over height [cm] 83,5
Chainstay length [cm] 50,5
Overall length [cm] 197
Wheel size [”] 27,5+
Head tube length [mm] 140
Headset size [”] 1 1/2
Front suspension travel [mm] 150
Effective rear suspension travel
[mm] 140
Rear shock length [mm] 210
Front shock mounting width
[mm] 30
Rear shock mounting width
[mm] 22
Front shock locking screw M8
Rear shock locking screw M8
Rear suspension ratio 2,8
Rear dropout width [mm] 148
Gear ratio [m] 1,74-7,91
Weight [kg] 25,4
Weight [lbs] 56
Gross vehicle weight rating [kg] 140
Weight rating: Luggage rack
[kg] 20
Weight rating: Handlebar
bag/basket [kg] 5
Childseat compatibility Ja
Trailer compatibility: Single
wheel/single attachment point
Nein
Trailer compatibility: Two
wheel/single attachment point
Ja
Compatibility: Tagalong trailer
bike
Ja
