Zipp 404 Firecrest® Carbon Tubeless Disc Centre Lock Wheelset Shimano

Zipp

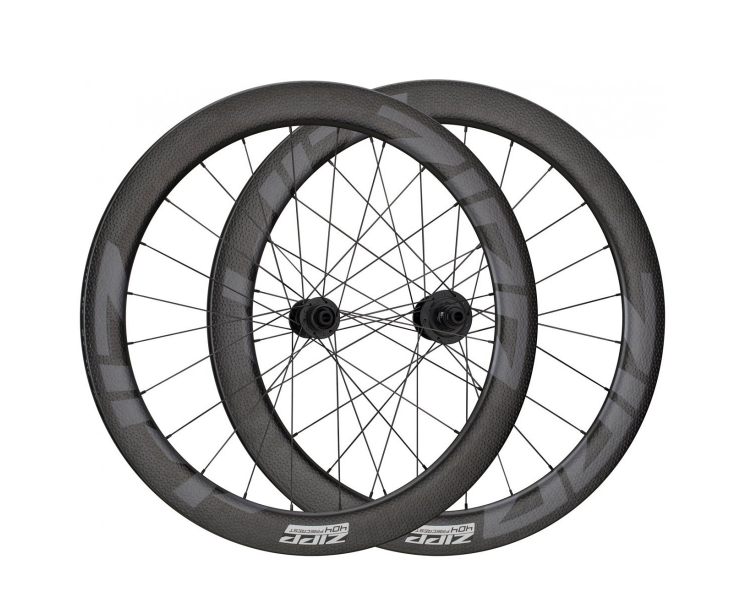

Zipp 404 Firecrest® Carbon Tubeless Disc Centre Lock Wheelset Shimano

1,999.00

1 in stock

Categories: ,

Description

The Zipp 404 Firecrest® Carbon Tubeless Disc Centre Lock wheelset has 58 mm rims trimmed for aerodynamic efficiency, innovative ZR1 disc hubs and can be ridden without tubes. This makes it ideal for road racing, time trials, triathlon, but also endless training sessions.

Specifications:

Application: Road, Triathlon & Time Trial
Wheel Size: 28″
Tyre Type: clincher
Number of Spokes: 24
Brake Type: Center Lock Disc
Tubeless System: Tubeless Ready

Technical Information – Rim:

Type: Zipp Firecrest
Rim Flange: with hook
Dimensions (ETRTO): 19-622
Inner Width: 19 mm
Outer Width: 27 mm
Depth: 58 mm
Valve Hole Diameter: Presta (6.5 mm)
Rim Material: carbon

Technical Information – Front Hub:

Type: Zipp ZR1 Disc
Over Locknut Dimension: 12 x 100 mm thru-axle
Bearings: cartridge (stainless steel)
Body Material: aluminium

Technical Information – Rear Hub:

Type: Zipp ZR1 Disc
Over Locknut Dimension: 12 x 142 mm thru-axle
Bearings: cartridge (stainless steel)
Body Material: aluminium
Freehub Body Material: aluminium
Freehub Body: 6 pawls (66 engagement points)

Technical Information – Lacing:

Front Lacing Pattern: 2-cross
Rear Lacing Pattern: 2-cross
Spoke Type: Sapim CX-Sprint
Spoke Size: 252 mm/254 mm (front l/r), 252 mm/248 mm (rear l/r)
Spoke Material: stainless steel
Nipple Type: Sapim Secure-Loc
Nipple Material: aluminium

Approved For:

Weight Limit: 115 kg total weight
Air Pressure (max.): 8.6 bar
Compatible Tyre Width: 28 – 62 mm (according to ETRTO)

Features:

– new Zipp graphics for a speedy look
– 58 mm rim depth with proven crosswind stability
– ZR1 DB hub (manufactured in Germany) with revised seal design for improved durability and faster response
– tubeless ensures reliable performance even at low tyre pressures
– ABLC SawTooth™ Dimple Design helps to control the airflow around the rim and contributes to speed and stability
– for disc brakes: superior braking power and modulation
– aluminium axles
– front can be converted to 9 x 100 mm quick release or 15 x 100 mm thru-axle (end caps sold separately)
– rear can be converted to 10 x 135 mm quick release (end caps sold separately)

Technology:

Firecrest®
Through the pioneering use of software to analyse numerical fluid mechanics and the power of a super computer, Zipp is able to understand exactly what makes wheels go fast. Zipp then tests the most promising rim shapes in the wind tunnel and on the road. This process led to the Firecrest rim technology, which allows the airflow and centre of gravity of the wheel to be controlled more effectively, resulting in better aerodynamics, better handling in crosswinds and a better riding experience.

ABLC SawTooth™
This patented rim shape achieves what conventional aero wheels cannot: it simultaneously reduces aerodynamic drag and lateral wind forces, providing the ultimate AeroBalance™. In addition, the ABLC recesses ensure improved air flow. The result is lower aerodynamic drag and reduced lateral wind forces at any angle of attack. This is important because the steeper the wind angle, the larger the influence on the handling of the bike.

Colour Index:

black:
– Rims: black (carbon) with standard decals
– Hubs: black
– Spokes: black
– Nipples: black

Models:

28″ set (front 12×100 + rear 12×142) Shimano:
Freehub: Shimano Road
Gearing: 8-/9-/10-/11-speed
Note: Assembly of 8-/9-/10-speed cassettes on Shimano Road freehub bodies requires a 1.85 mm spacer.
Manufacturer Part Number: 00.1918.519.000 (front) + 00.1918.520.000 (rear)

Contents:

– 1 x Zipp 404 Firecrest Carbon Clincher Tubeless Disc Centre Lock wheelset (front and rear)
– 2 x Center-Lock lockrings
– 1 x cassette spacer (Shimano rear only)
– 2 x valve core removers
– 2 x tubeless rim tape (pre-installed)
– 2 x tubeless valves (pre-installed)

Additional information

Brand

Zipp
