| E-Bike |
|---|

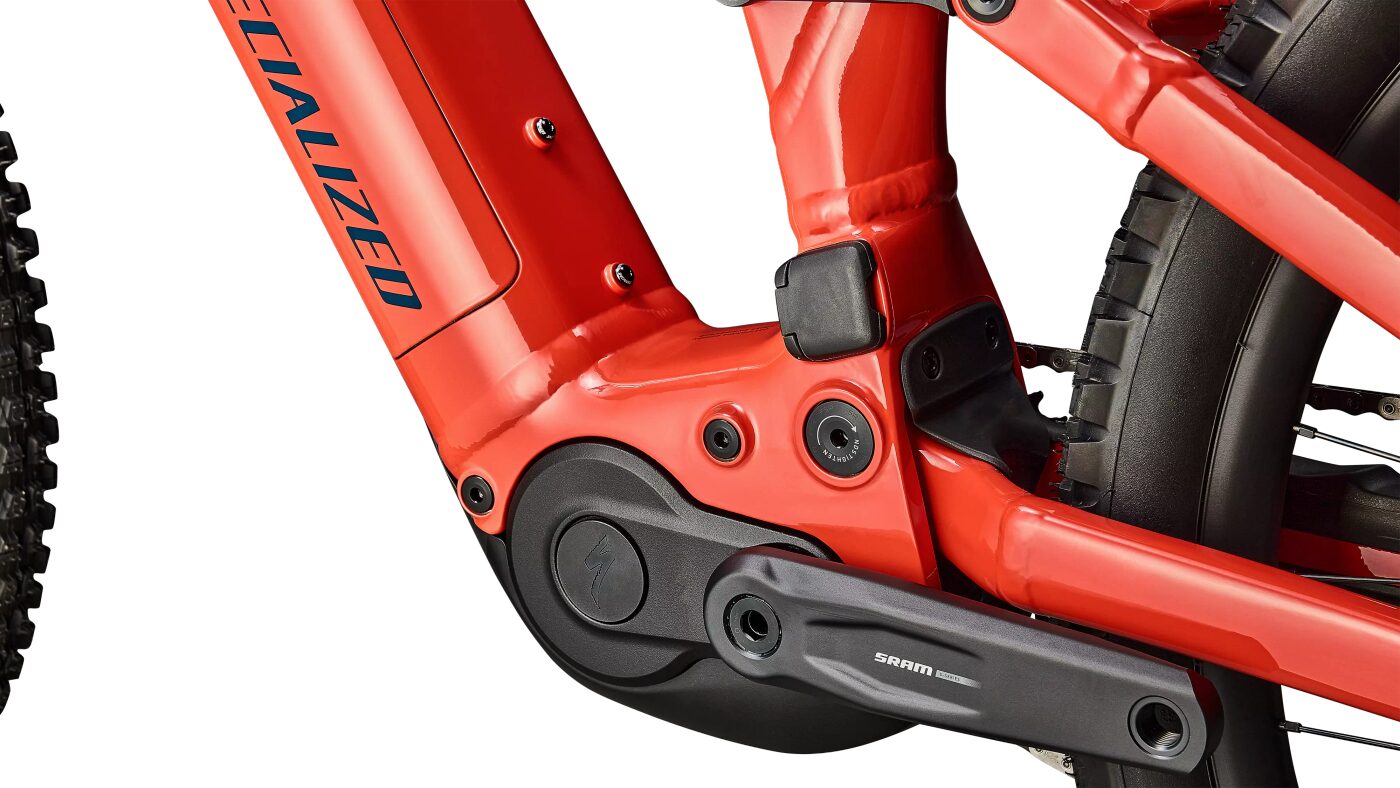

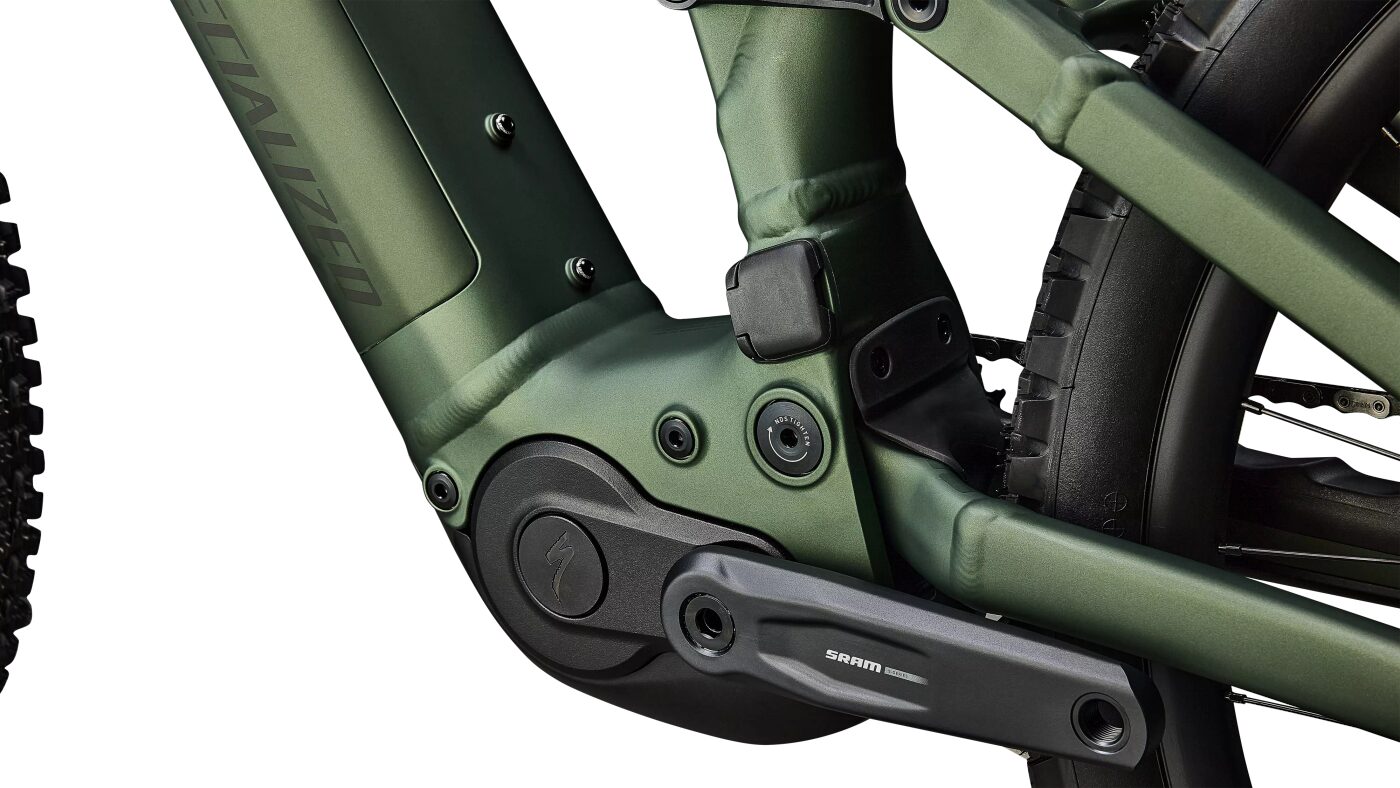

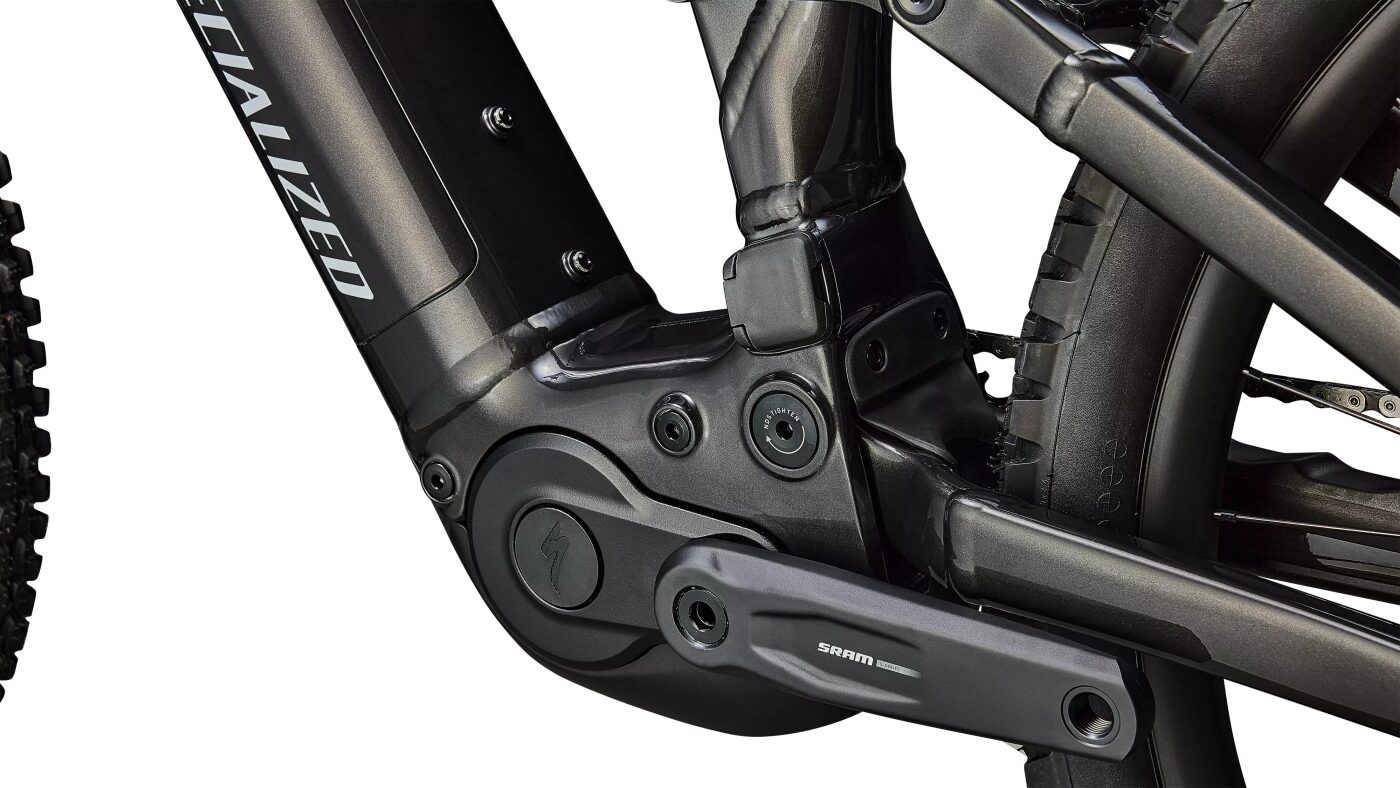

| Motor | Specialized 3.1 Motor, 105Nm torque, 810W power |
|---|
| Battery | 840Wh battery |
|---|

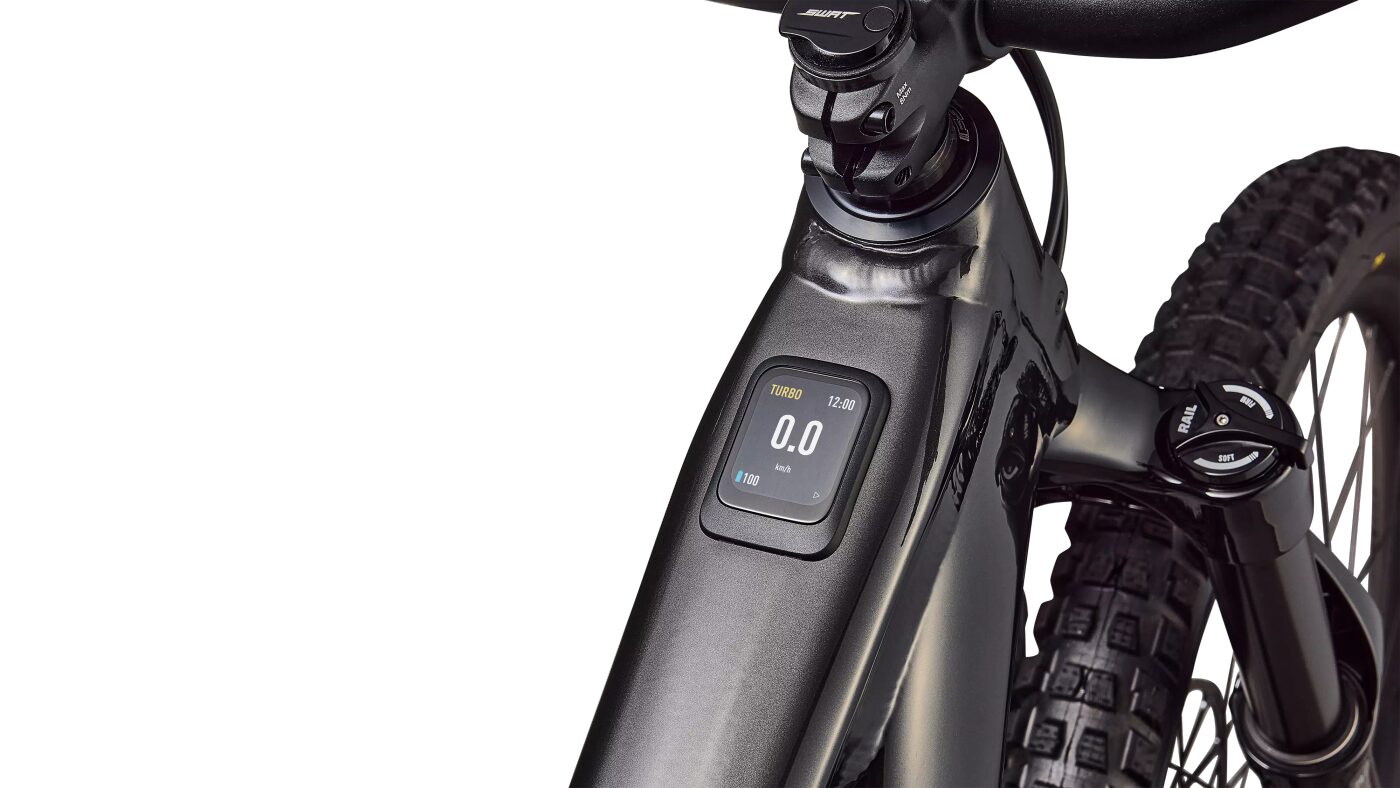

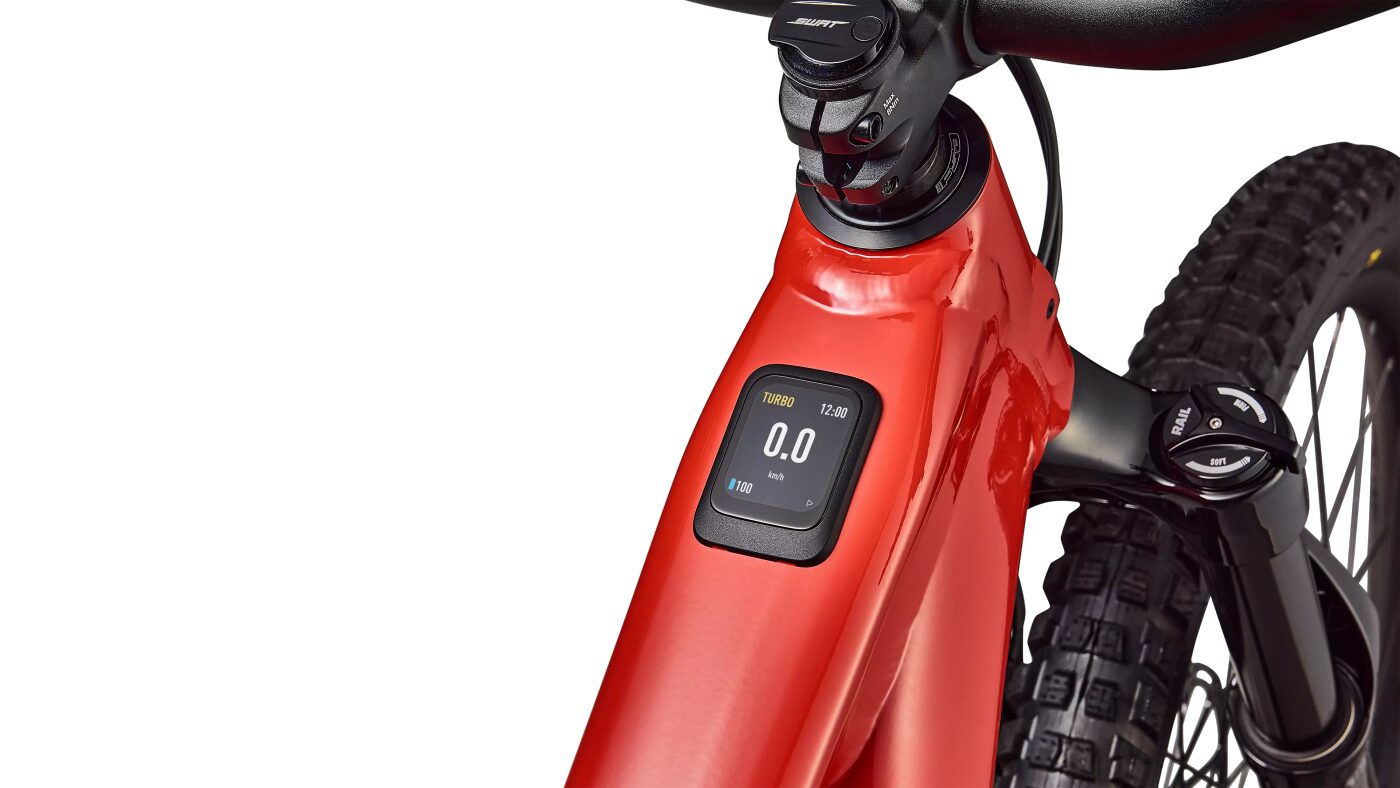

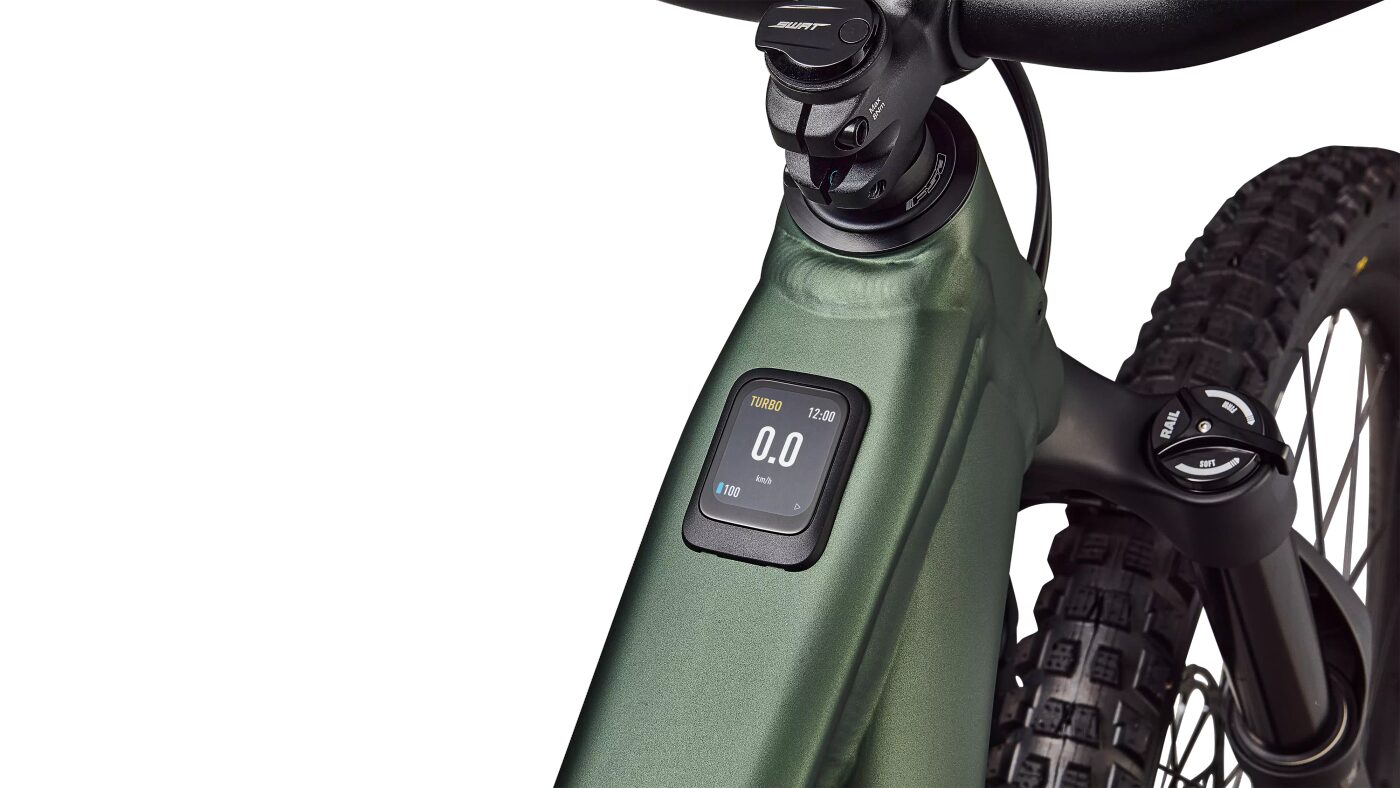

| UI/Remote | All New MasterMind T3 Display System, 2.2" high resolution color screen, fully customizeable with Specialized App |
|---|
| Charger | Specialized 4amp charger |
|---|
| Frameset |
|---|

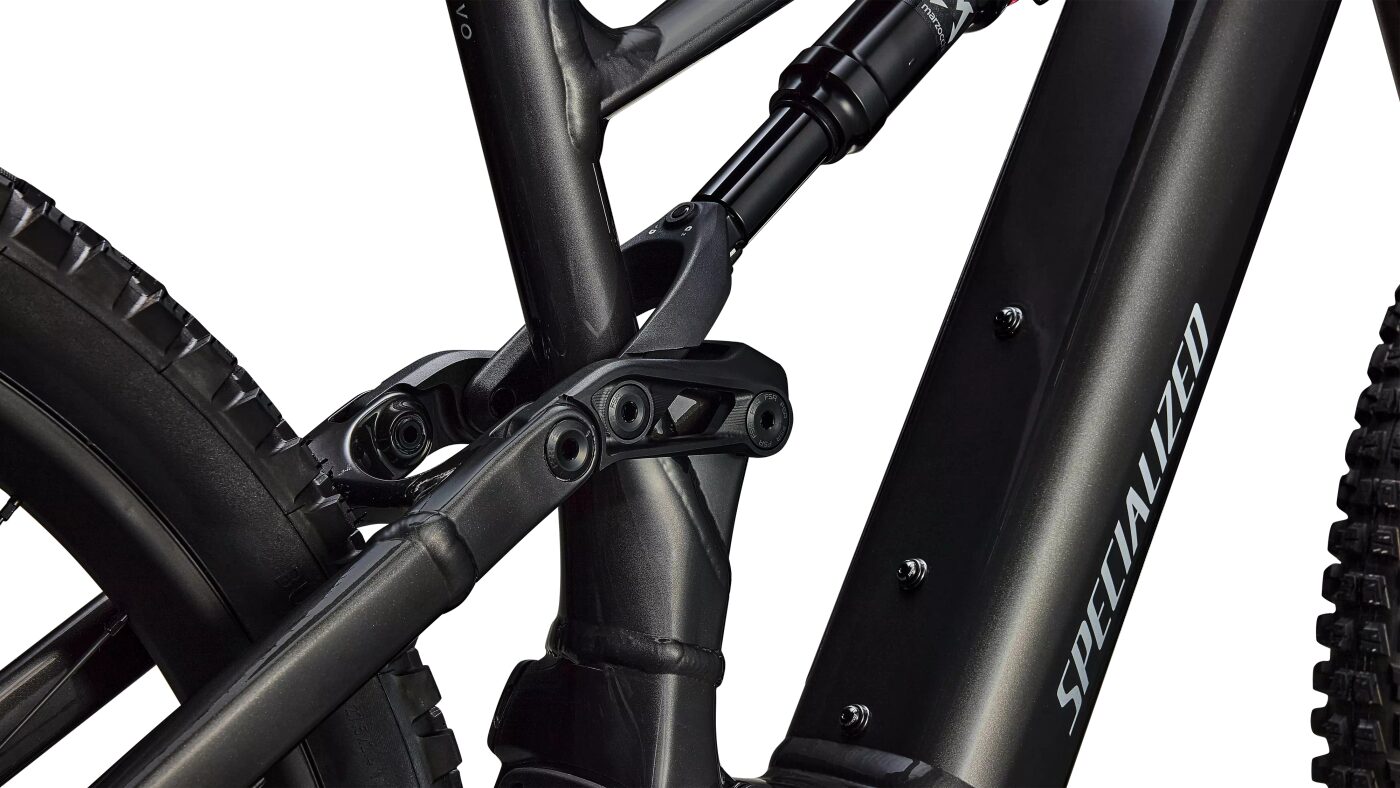

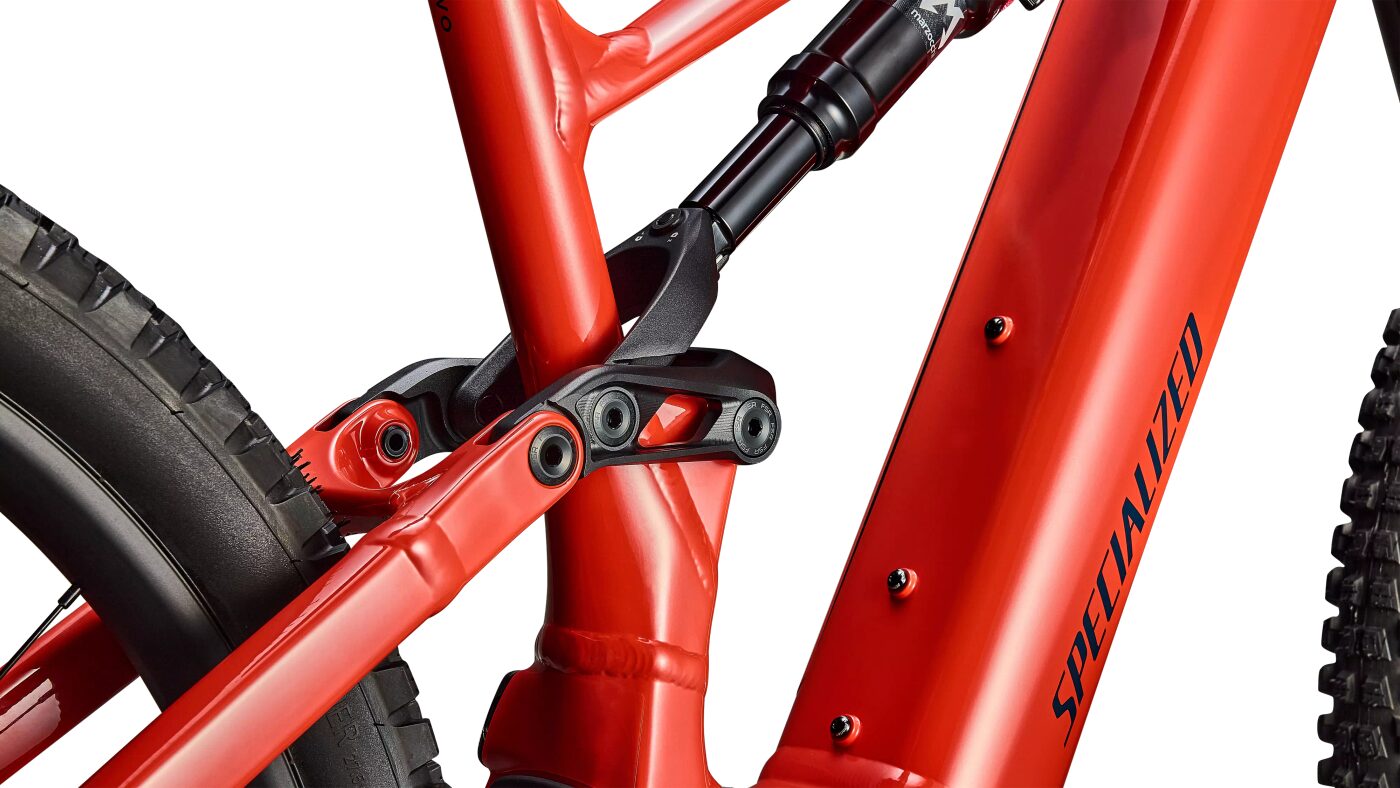

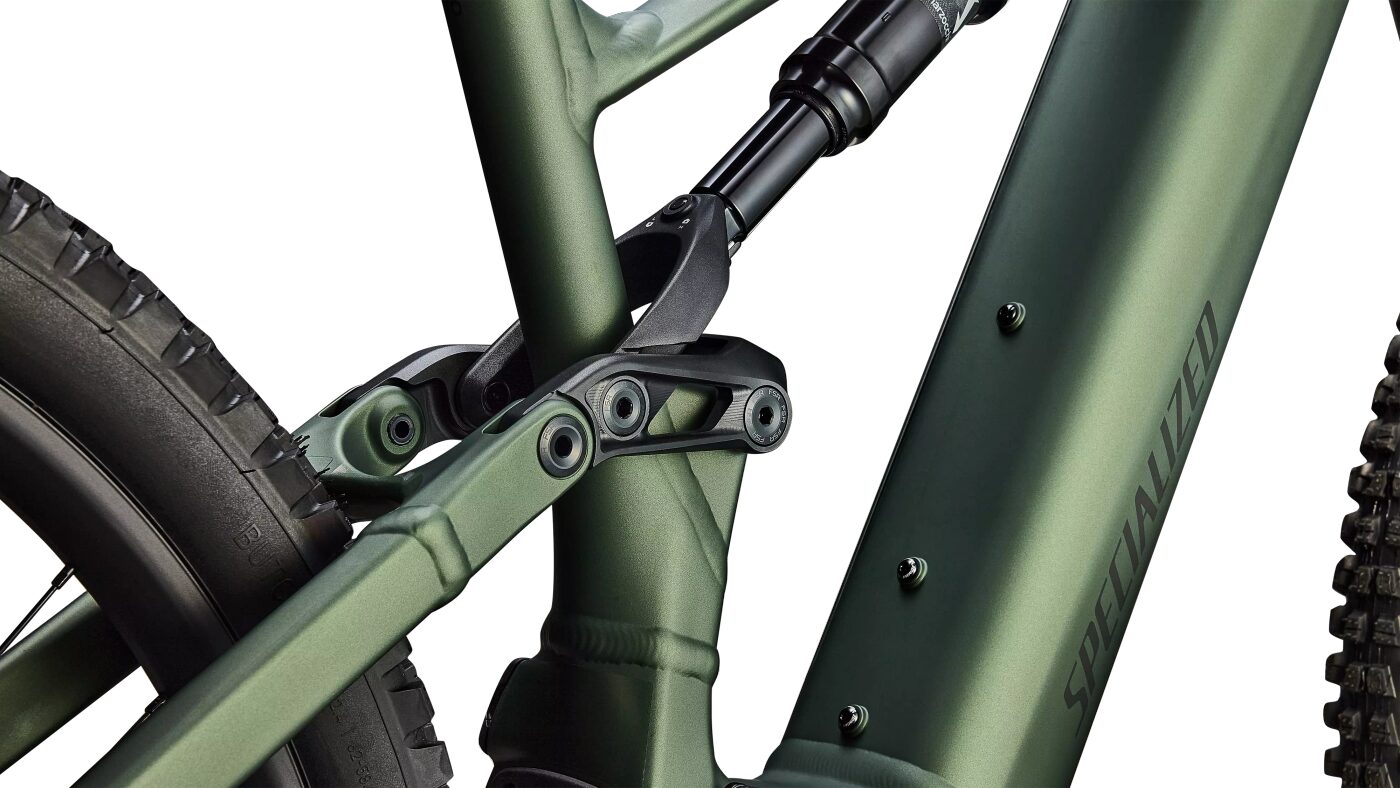

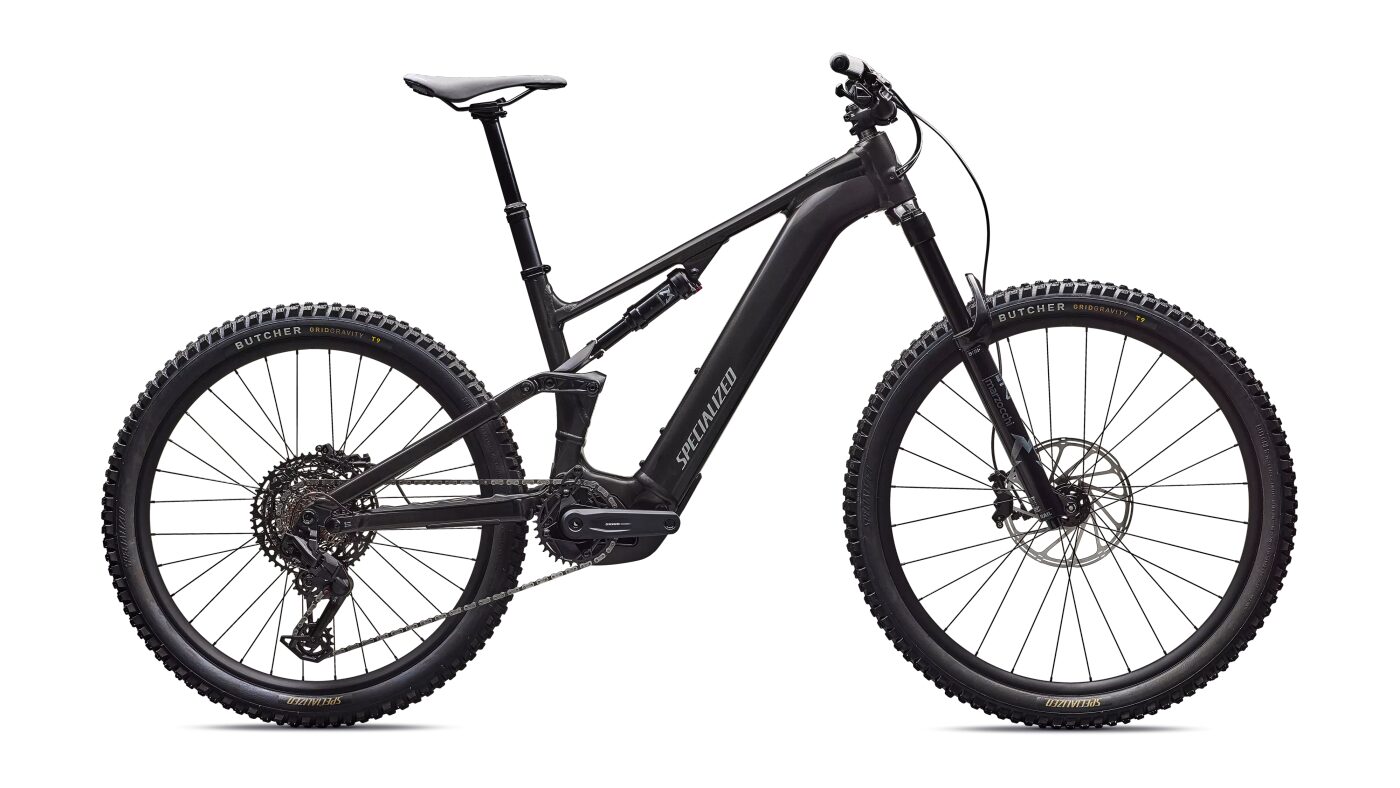

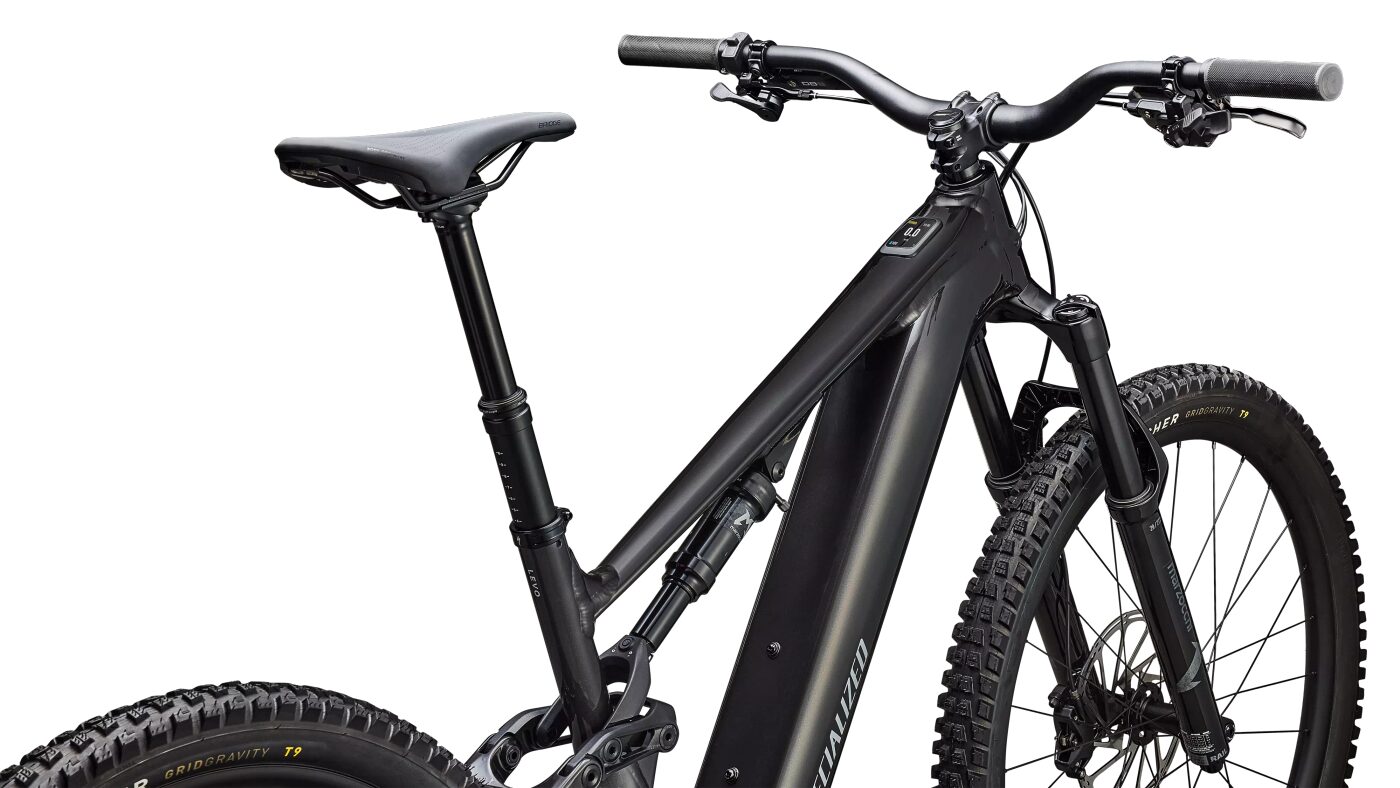

| Frame | All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29" front wheel/27.5" rear wheel, fork travel up to 180mm |
|---|
| Seat Binder | Alloy, 38.6mm |
|---|
| Suspension |
|---|

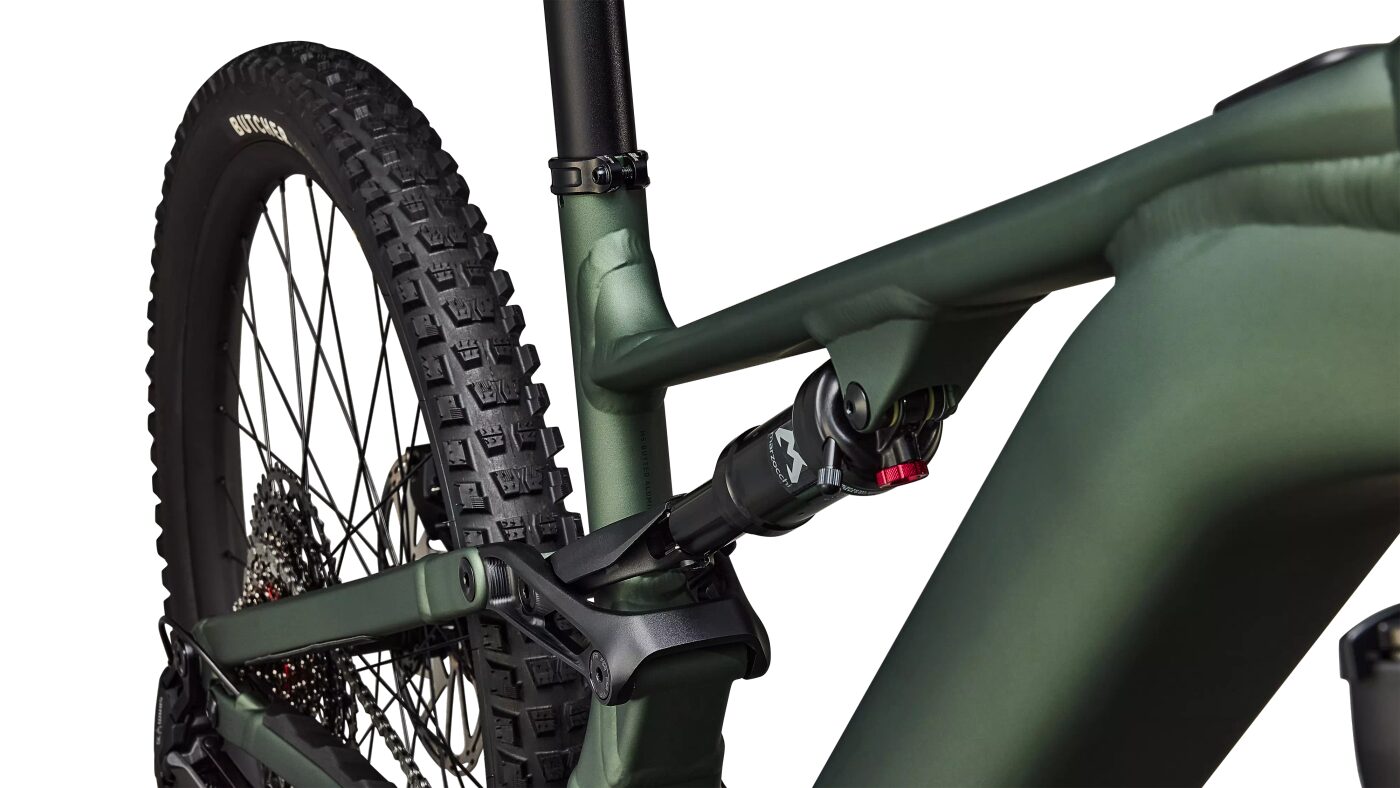

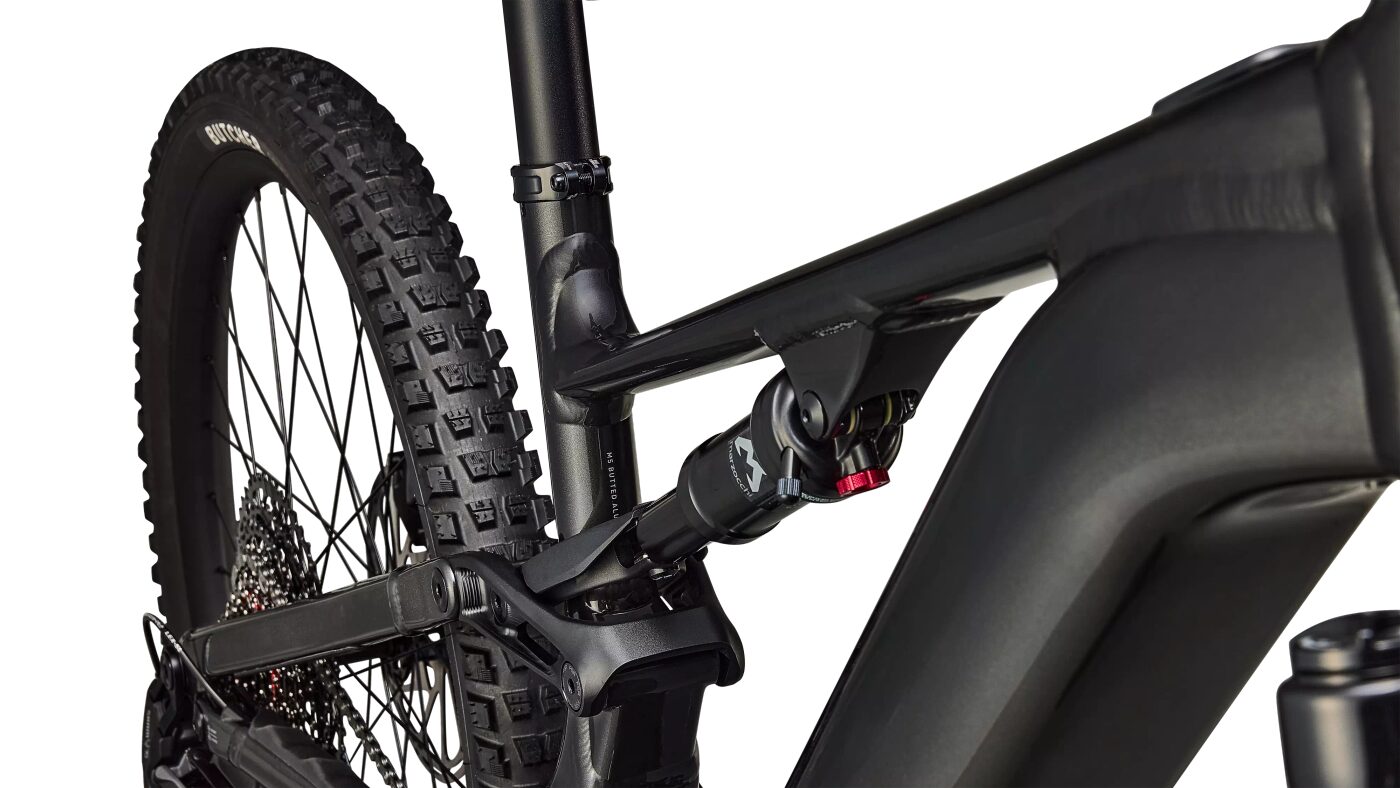

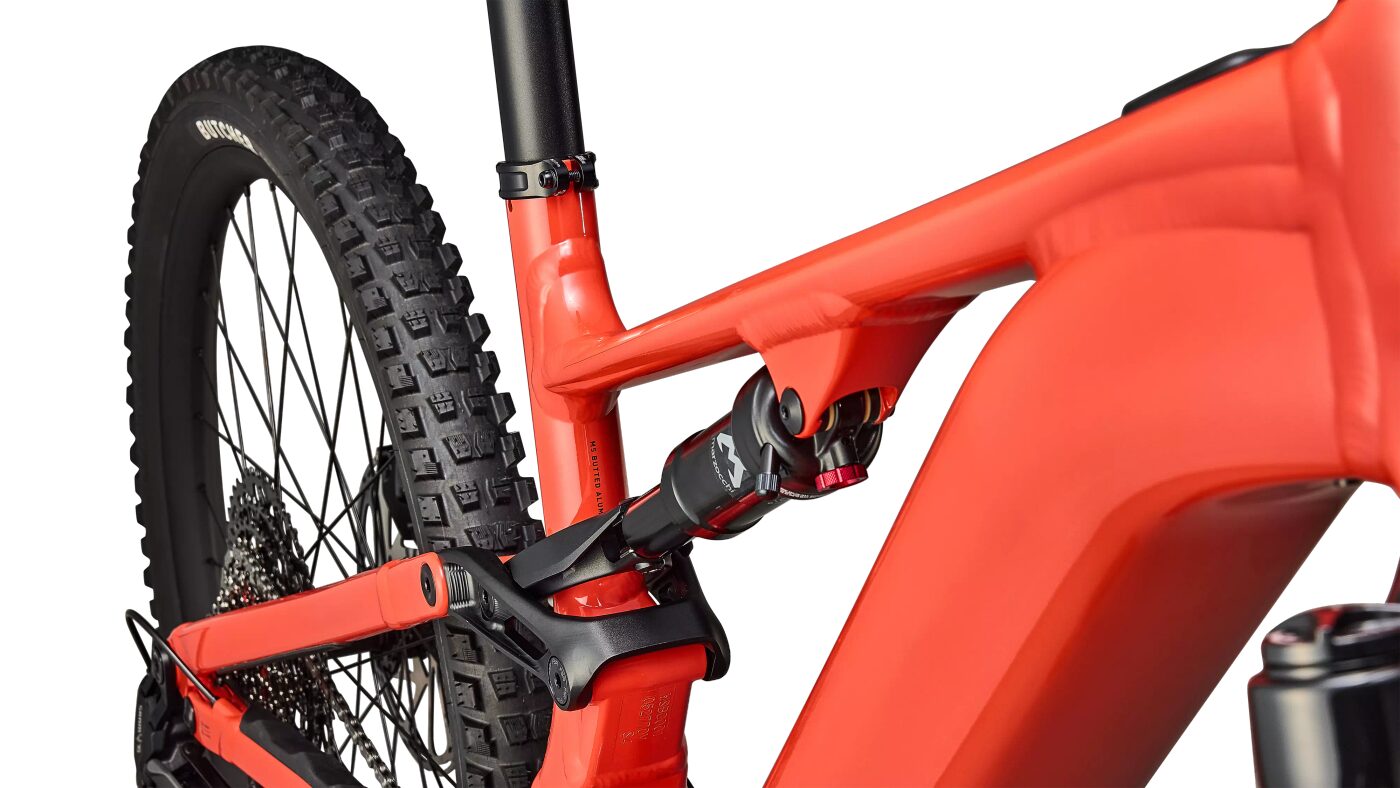

| Rear Shock | *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm |
|---|
| Fork | Marzocchi Bomber Z1, 29", S2-S6: 160mm, S1: 150mm, sweep adjust compression |
|---|
| Brakes |
|---|
| Front Brake | SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor |
|---|
| Rear Brake | SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor |
|---|
| Drivetrain |
|---|
| Shift Levers | SRAM 70 trigger, 12-speed, single click |
|---|
| Rear Derailleur | SRAM Eagle 70 Transmission, 12-speed |
|---|
| Cassette | XS-1270, 12-speed, 10-52t |
|---|
| Chain | SRAM Eagle 70 T-Type Flattop Chain |
|---|
| Crankset | SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm |
|---|
| Chainrings | SRAM 34t T-Type chainring, 104 BCD, steel |
|---|
| Wheels & Tires |
|---|
| Rims | Specialized, hookless alloy, 30mm inner width, tubeless ready |
|---|
| Front Hub | Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h |
|---|
| Rear Hub | Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h |
|---|
| Spokes | DT Swiss Elemental |
|---|
| Front Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.4" |
|---|
| Rear Tire | Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.4" |
|---|
| Inner Tubes | Standard, Presta Valve |
|---|
| Cockpit |
|---|

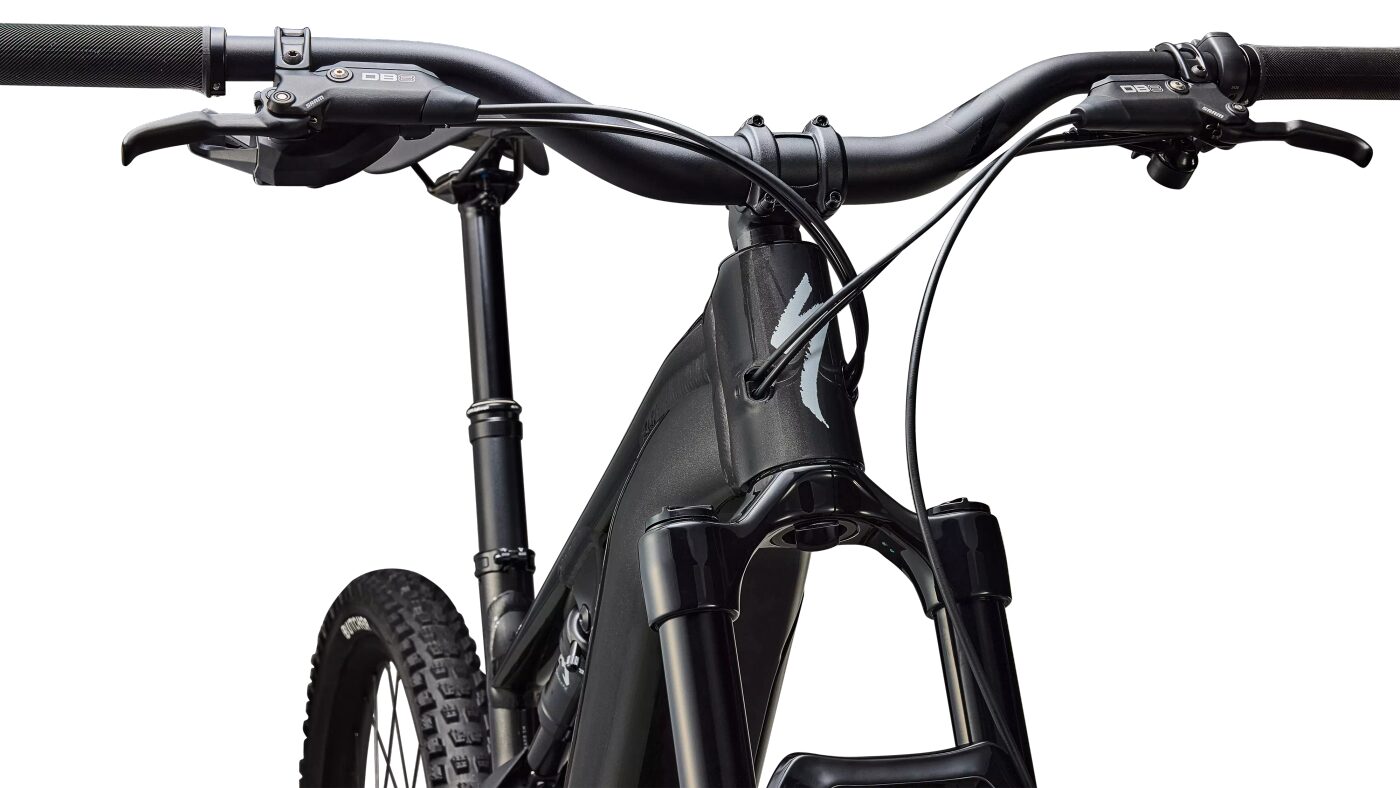

| Stem | Alloy Trail Stem, 35mm bar bore |
|---|

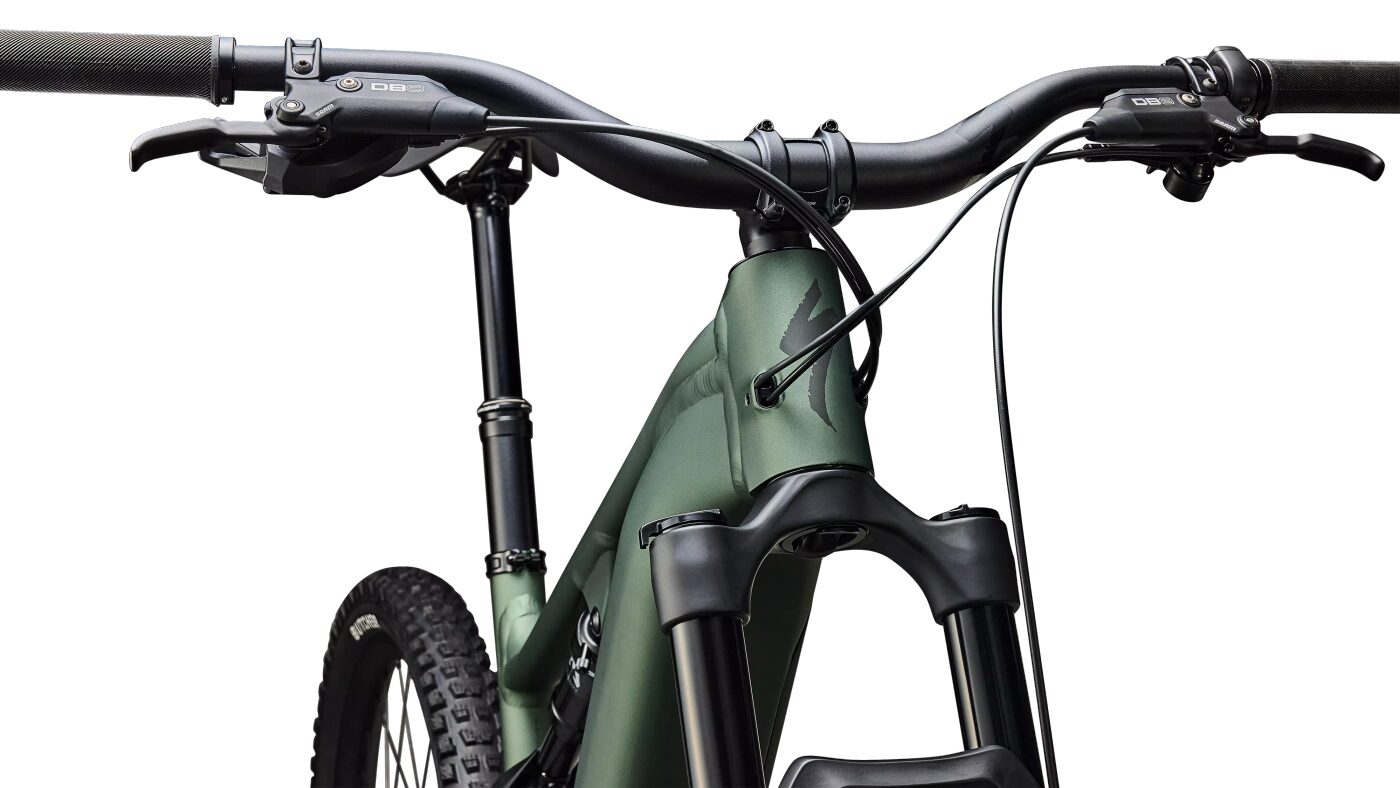

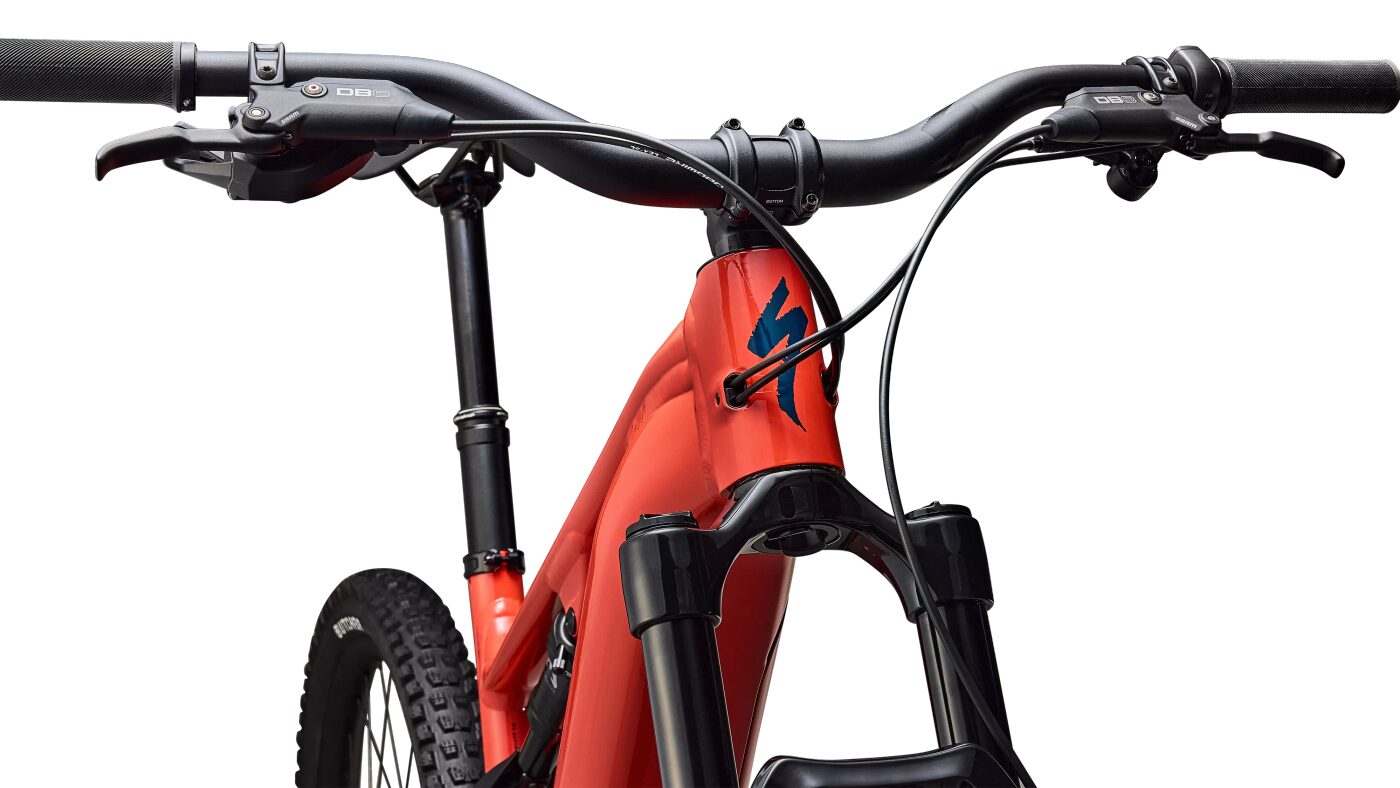

| Handlebars | Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm width/30mm rise, S3-S6 800mm width/50mm rise |
|---|
| Grips | Specialized Trail Grips |
|---|
| Saddle | Body Geometry Bridge Saddle, steel rails |
|---|
| SeatPost | TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm |
|---|
| Accessories |
|---|
| SWAT | SWAT Internal downtube storage |
|---|
| Product Details |
|---|
| Product ID | 221348 |
|---|
| Compliance Certification | As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS.
For information on lithium-ion battery standards and regulations in New York City, visit: [www.nyc.gov/fdny/batteries](https://www.nyc.gov/fdny/batteries) |
|---|
| Weight |
|---|
| Weight | 26.08 kg (57 lb, 7.8 oz) |
|---|
| Weight Size | S4 |
|---|
