Description

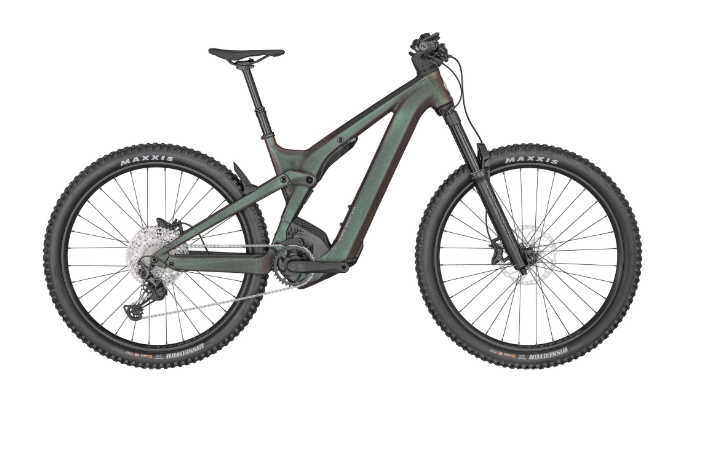

The Patron eRIDE 920 is designed with a system optimized for day-long trail rides. Supreme integration and meticulously selected geometry paired with a powerful new Bosch drive unit deliver much more than a great bike. What you get, instead, is a sublime experience up and down the mountain, time and time again. The Patron eRIDE: Rule the trails.
Chassis Alloy Frame & Link. Virtual 4 link kinematic VLK. 29×2.6 / Boost 148x12mm UDH. 160mm travel / Bosch SmartSystem / Integr. removable Battery. 1.8″ Headtube. Central Kickstand Mount Integr. Cable.
Excursion Front: 160mm / Rear: 160mm.
Fork RockShox Domain Air. 15x110mm QR axle / 1.8″ Tapered Steerer. Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike.
Rear Shock Absorber FOX Float EVOL eRIDE Trunnion. 3 modes / Lockout-Trail-Descend. DPS / Reb. Adj. Travel 160mm / 205x60mm.
Remote Command SCOTT TwinLoc 2 Technology. Suspension & Dropper Remote. 3 modes.
Motor Bosch Performance CX. EU: 25kmh / INT: 20mph.
Drums PowerTube 750Wh.
Screen Bosch LED Remote & Kiox 300.
Charger 4A Charger.
Rear Derailleur Shimano XT / 12 Speed.
Slight Change Shimano SL-M6100.
Garnish FSA CK-745 165mm / 34T.
Guidacatena e*thirteen / e*spec Slider.
Corona FSA W0138+WB499 / 34T / Steel.
Chain Shimano CN-M6100.
Box Shimano CS-M6100 / 10-51T.
Brakes SRAM DB8 4 Piston Disc.
Brake Disc SRAM Centerline CL Rotors 200mm F&R.
Handlebar Syncros Hixon 2.0 / Alloy 6061D.B. 12mm rise / 9° / 780mm. Syncros Endurance lock-on grips.
Handlebar Stem Syncros AM2.0 / 6061 Alloy, 31.8mm / 4° / 1 1/8″.
Seatpost Syncros Duncan Dropper Post 2.5. Size S 125mm / Size M 150mm / Size L 170mm Size XL 200mm.
Saddle Syncros Tofino 2.5 Regular.
Steering Series Acros / 1.8″. ZS66 OD74 / integr. Cable.
Front Hub Shimano HB-MT410-B CL / 15x110mm.
Rear Hub Shimano FH-MT410-B CL / Boost 12x148mm.
Rays Stainless Black.
Circle Syncros MD30 / 32H / 30mm / Pin Joint. Tubeless ready.
Front Tire Maxxis Dissector 29×2.6″. 120TPI Foldable Bead. EXO+ / TR Tubeless ready. 3C Maxx Terra.
Rear Tire Maxxis Dissector 29×2.6″. 120TPI Foldable Bead. EXO+ / TR Tubeless ready. 3C Maxx Terra.
Lights Syncros integrated rear fender light. Front Light Cable pre-installed.
Weight in kg (Approx.) 26.5 (with tubes).
Weight in lbs (Approx.) 58.42 (with tubes).
Total Weight 128kg. Total weight includes bike, rider, gear, and potentially additional luggage.
