Description

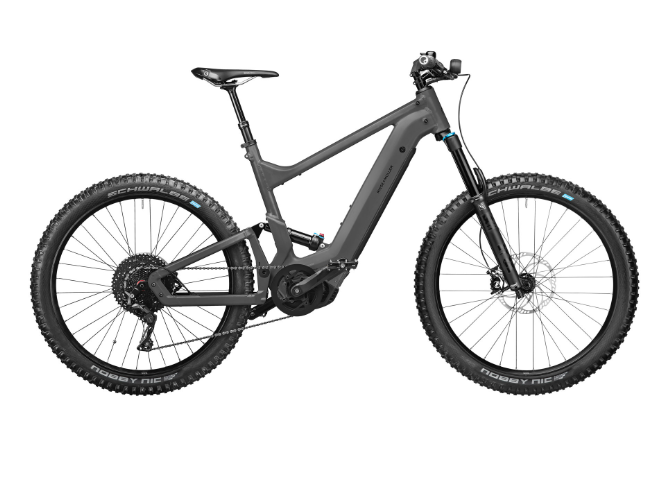

Model Delite mountain touring
Equipment Bosch Performance Line CX, Bosch PowerTube 625 Wh, Shimano Deore XT, 12-speed derailleur gear
Frame size 51 cm
Frame colour chili matt
Display Kiox
Battery 625 Wh
Specifications
Frame colour chili matt*; urban grey matt*
Suspension fork Fox Float 36 Performance, Air, 150mm, Boost
Rear shock Fox Float DPS Performance 210×50
Headset Acros Integration X, block lock
Seatpost Dropper Post X-Fusion Manic 100
Tires Schwalbe Nobby Nic Evo 65-584; Schwalbe Nobby Nic, Evo 70-584
Tubes Schwalbe AV21
Rims Rodi Tryp35 27,5″
Spokes Sapim Leader 2,0 mm, Inox, black
Front hub Novatec Boost, QR, 32H
Rear hub Novatec Boost, QR, 36H
Battery Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*
Motor Performance Line CX (Gen4)
Display Bosch Kiox; Bosch Nyon*; Bosch SmartphoneHub*
Crankset Riese & Müller, 170mm
Chain ring 38T
Chain guard Kettenschutzring
Chain KMC X12
Cassette Sunrace 12-speed, 11-51
Saddle FIZIK Monte MG
Pedals VP-531 Flat Pedal, Alu
Shifting system Shimano XT, 12-speed
Shifter Shimano SLX, 12-speed
Handlebar Ergotec Lowriser, 31,8 mm; FSA Afterburner, 31,8 mm*
Stem FSA Afterburner, 6°, 60mm
Grips Ergon GA20 black
Brakes Magura MT4, disc brake; Magura MT5, disc brake
Front light Supernova M99 Mini Pro-25
Tail light Supernova E3 E-Bike; Supernova E3 E-Bike Tail Light 2
Luggage rack Riese & Müller*
Rubber Bibia*
Bell Billy
Lock Abus Bordo X+ 6000/90cm black*
Pump Beto air suspension fork pump
RX Hardware RX Chip (für RX Services)*
Frame size [cm] 47 cm*; 51 cm*; 56 cm*
Frame geometries
Frame height 51
Top tube length [cm] 62
Reach [cm] 42,5
Stack [cm] 64
Head tube angle [°] 66,5
Seat tube angle [°] 73
Trail [mm] 103
Wheelbase [cm] 125,5
Bottom bracket height [cm] 33,5
Stand-over height [cm] 83,5
Chainstay length [cm] 50,5
Overall length [cm] 197
Wheel size [“] 27,5
Head tube length [mm] 140
Headset size [“] 1 1/2
Front suspension travel [mm] 150
Effective rear suspension travel [mm] 140
Rear shock length [mm] 210
Front shock mounting width [mm] 30
Rear shock mounting width [mm] 22
Front shock locking screw M8
Rear shock locking screw M8
Rear suspension ratio 2,8
Rear dropout width [mm] 148
Weight [kg] 25,4
Weight [lbs] 56
Gross vehicle weight rating [kg] 150
Weight rating: Luggage rack [kg] 20
Weight rating: Handlebar bag/basket [kg] 5
Weight rating: Front carrier [kg] 5
Childseat compatibility carrier no
Trailer compatibility: Single wheel/single attachment point no
Trailer compatibility: Two wheel/single attachment point yes
Compatibility: Tagalong trailer bike
