Description

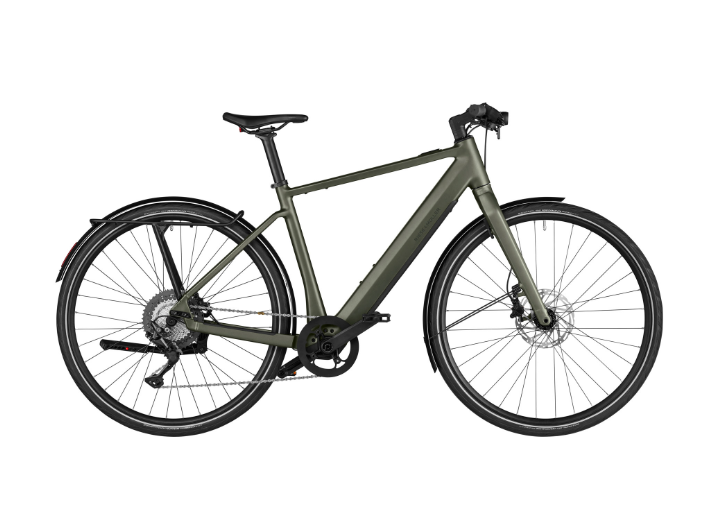

Model UBN Five touring
Equipment Fazua Ride 60, Fazua Energy 430 Wh, Shimano Deore, 11-speed derailleur gear
Frame size 51 cm
Frame colour selva
Display LED Hub
Carrier Pannier rack
Battery 430 Wh
Specifications
Frame colour black matt*; selva*
Suspension fork Suntour GVX32, 28″, Air, tapered, 60mm*, Rigid fork Kinesis VL56A*
Headset Acros Integration X, block lock
Seatpost JD-SP66, Alu, 34,9 x 300mm*; JD-SP66, Alu, 34,9 x, 400mm*; Satori Elegance-LT OV 34,9 x 355mm*, Satori Elegance-LT OV 34,9 x 405mm*
Tires Schwalbe Marathon Supreme 42-622
Tubes Schwalbe AV17
Rims BlackJack Ready 25 28″
Front hub Novatec Disc 32H
Rear hub Novatec Boost, 36H
Battery Fazua Energy 430
Motor Fazua Ride 60
Crankset FSA/Riese & Müller, 170 mm
Chain ring 42T
Chain guard Chain guard
Chain KMC X11
Cassette Shimano XT 11-speed, 11-46
Saddle Fizik Terra Aidon 145; Fizik Terra Aidon 160*
Pedals M-Wave Steady Flat
Shifting system Shimano Deore 10/11-S
Shifter Shimano SLX, 11-speed
Handlebar Satori Horizon, 31,8 mm, 9°, B=620 mm; Satori, Noirette Plus, 31,8 mm, Alu*
Stem Satori Sidewinder, 90mm, 7°
Grips Herrmans Grips Rib; Herrmans Grips Line*
Brakes Tektro TRP disc brake
Front light Supernova mini 2
Tail light Busch & Müller XelTec LED
Mudguards Curana CLite 50
Luggage rack Pannier holder Riese & Müller; Riese & Müller, MIK*
Bell Knog OI V2
Kickstand Ursus R90 Mooi
Lock ABUS Shield X+*
Frame size [cm] 45 cm*; 51 cm*; 57 cm*
Frame geometries
Frame height 51
Top tube length [cm] 58,5
Reach [cm] 41
Stack [cm] 61,1
Head tube angle [°] 70
Seat tube angle [°] 74
Trail [mm] 81
Wheelbase [cm] 111
Bottom bracket height [cm] 28,5
Top tube height [cm] 49,9
Stand-over height [cm] 83
Chainstay length [cm] 47
Overall length [cm] 185,8
Wheel size [“] 28
Head tube length [mm] 145
Front suspension travel [mm] 60
Weight [kg] 19,7
Weight [lbs] 43,3
Gross vehicle weight rating [kg] 135
Max. rider weight [kg] 100
Weight rating: Luggage rack [kg] 27
Weight rating: Pannier rack [kg] 2 x 7,5
Weight rating: Handlebar bag/basket [kg] 5
Childseat compatibility carrier yes
Trailer compatibility: Single wheel/single attachment point yes
Trailer compatibility: Two wheel/single attachment point yes
Compatibility: Tagalong trailer bike yes
