Description

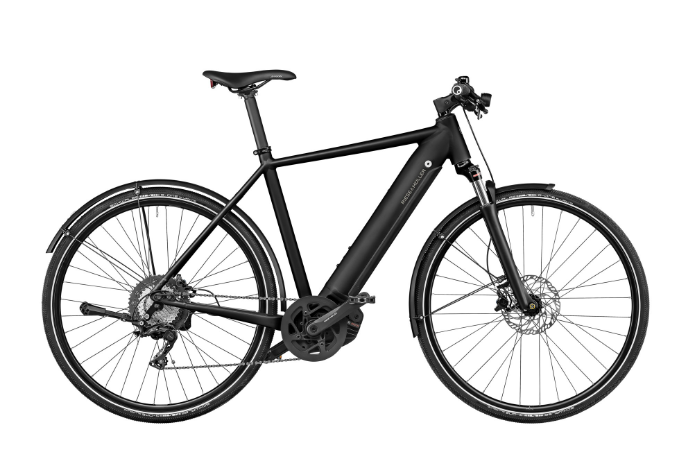

Model Roadster touring
Equipment Bosch Performance Line CX, Bosch PowerTube 625 Wh, Shimano Deore XT, 11-speed derailleur gear
Frame size 56 cm
Frame colour black matt
Display Nyon
Battery 625 Wh
Specifications
Frame colour black matt*; grey matt*
Suspension fork Suntour NCX 28″, tapered
Headset Acros Integration X, block lock
Seatpost Satori Trident; Satori Elegance-LT OV 34,9 x 405mm*
Seatclamp Kalloy SC-201, 40,0 mm
Tires Schwalbe G-One 40-622
Tubes Schwalbe AV17
Rims Mach1 650, 28″
Spokes Sapim Leader 2,0 mm, Inox, black
Front hub Novatec Disc 32H
Rear hub Novatec Boost, QR, 36H
Battery Bosch PowerTube 625 Vertical, 36 V, 16,7 Ah/625Wh*
Motor Performance Line CX (Gen4)
Display Bosch Purion; Bosch Nyon*; Bosch SmartphoneHub*
Crankset FSA/Riese & Müller, 170 mm
Chain ring 42T
Chain guard Chain guard
Chain KMC X11
Cassette Shimano CUES CS-LG700-11,11-50
Saddle Selle Royal Essenza Eco Unisex
Pedals VP R&M Custom
Shifting system Shimano XT 11-S Linkglide
Shifter Shimano XT 11-S Linkglide
Handlebar Satori Horizon, 31,8 mm, 9°, B=620 mm; Satori, Noirette Plus, 31,8 mm, Alu*
Stem Satori Stealth 6, 90 mm, +/-7°
Grips Hermans Grips; Ergon ergonomic*
Brakes Shimano Deore, disc brake
Front light Supernova mini 2
Tail light Busch & Müller XelTec LED; Busch & Müller Toplight, 2C LED*
Mudguards SKS A45
Luggage rack Riese & Müller, Racktime*, Bell Billy
Kickstand Ursus R90 Mooi, Lock ABUS Shield X+*, RX Hardware RX Chip (für RX Services)*
Frame size [cm] 51 cm*; 56 cm*; 61 cm*
Frame geometries
Frame height 56
Top tube length [cm] 57
Reach [cm] 39
Stack [cm] 63
Head tube angle [°] 70
Seat tube angle [°] 74
Trail [mm] 82
Wheelbase [cm] 110
Bottom bracket height [cm] 27,5
Stand-over height [cm] 84,5
Chainstay length [cm] 47
Overall length [cm] 179,5
Wheel size [“] 28
Head tube length [mm] 140
Front suspension travel [mm] 63
Rear dropout width [mm] 135
Weight [kg] 23,7
Weight [lbs] 52,1
Gross vehicle weight rating [kg] 150
Max. rider weight [kg] 110
Weight rating: Luggage rack [kg] 20
Weight rating: Handlebar bag/basket [kg] 5
Weight rating: Front carrier [kg] 5
Childseat compatibility carrier no
Trailer compatibility: Single, wheel/single attachment point, yes
Trailer compatibility: Two, wheel/single attachment point, yes
Compatibility: Tagalong trailer, bike, yes
