Description

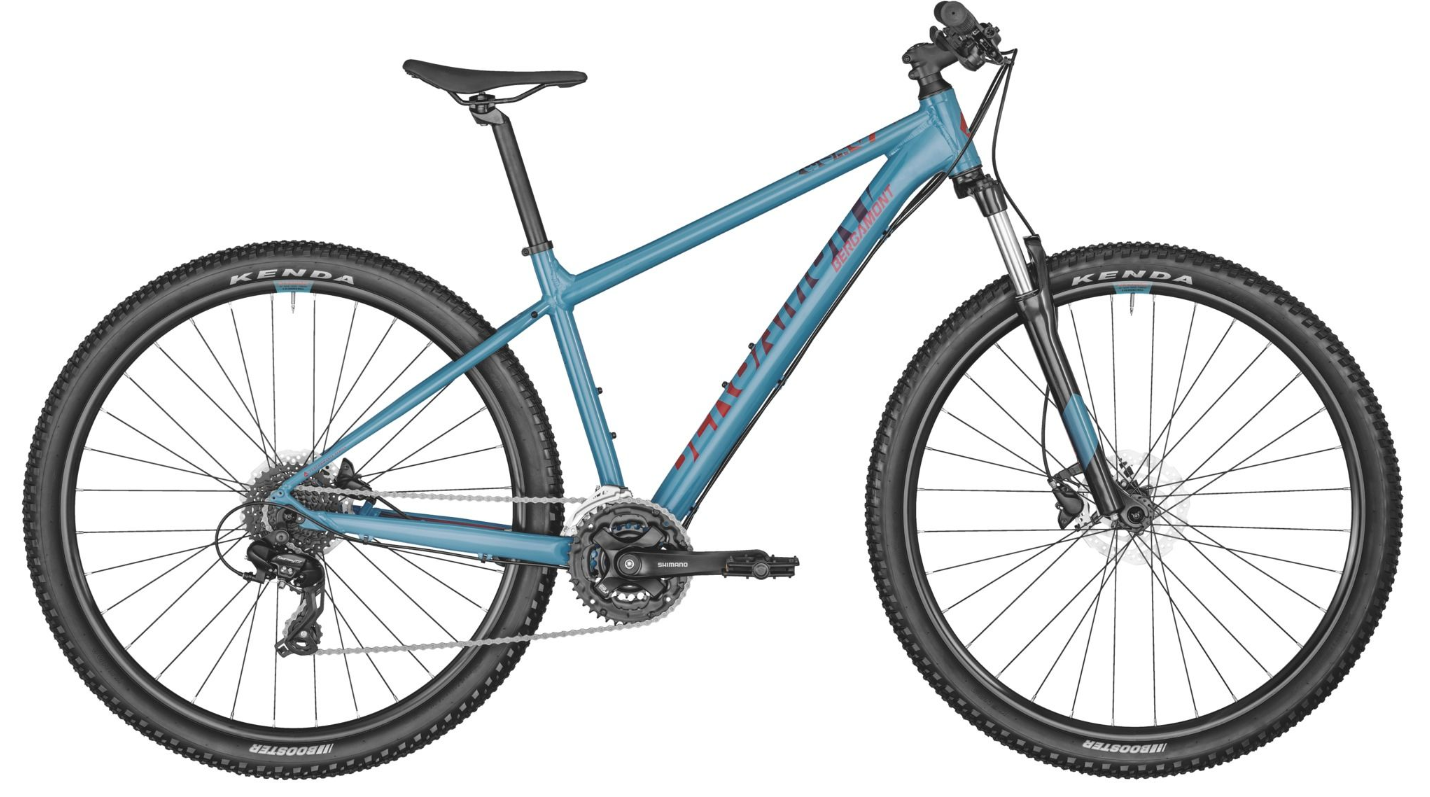

Reliable mountain bike hardtail for any terrain. Revox frame with updated geometry and bigger size range, more tyre clearance and improved compatibility when retrofitting fenders and kickstand.
Frame 29″ (27.5″), lite AL-6061 tubing
Fork Suntour XCE28 DS, 100 mm, preload adjust
Rear Derailleur Shimano RD-TX800
Front Derailleur Shimano FD-TY700
Shifters Shimano SL-M315, 3×8-speed, rapidfire-plus-shifter
Crankset Shimano FC-TY501, 42/34/24t
BB-Set Sealed cartridge, BSA
Chain KMC Z8
Cassette Sunrace CS-M55, 11-34t
Brake Levers Shimano BL-MT200, hydraulic disc brake
Brakes Shimano BR-MT200, hydraulic disc brake
Rotor Shimano SM-RT10, 160 mm
Handlebar BGM Comp, riserbar, width: 700 mm
H’stem BGM Comp, +/-6°
Seatpost BGM Comp
Seat Syncros Tofino 2.5
Headset BGM FP-H807B, A-Headset, semi-integrated, 1 1/8″
Hub (Front)Shimano, centerlock, disc, quick release
Hub (Rear)Shimano, centerlock, disc, quick release
Spokessteel, black
Rims Alex X20, disc, width: 20 mm
Front Tire Kenda Booster, 29×2.40″ (27.5×2.40″)Tube: Impac SV29
Rear Tire Kenda Booster, 29×2.40″ (27.5×2.40″)Tube: Impac SV27
Pedals Feimin FP-803
Approx weights in KG14,6
Color caribbean blue (shiny)
Frame size XS7/S7/M7/M9/L9/XL9/XXL9
Grips Syncros MTB
Max. System Weight 115,0 kgThe overall weight includes the bike, the rider, the equipment and possible additional luggage.
